NC SERVO FEEDER | 3 in1 Compact Servo-Straightener Feeder
- The comprehensive humanization considerations and ergonomic design eliminate the nervousness of the operator facing the NC machine and make the operation easier;our NC servo feeder is a googd example.
- Innovative mechanical structure minimizes the space required for the entire machine.
- A variety of machine choices are more suitable for punch size and job requirements.
- Special order options available for all press sizes. E.g. Save material with the Zig Zag Electronic Roller Feeder.

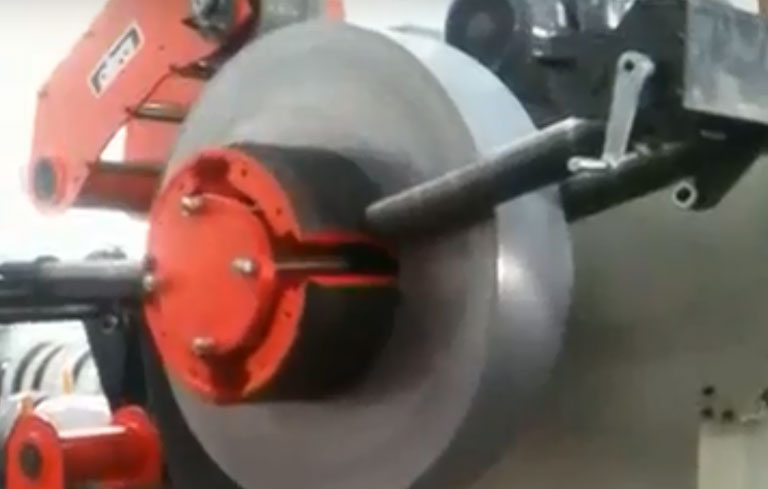

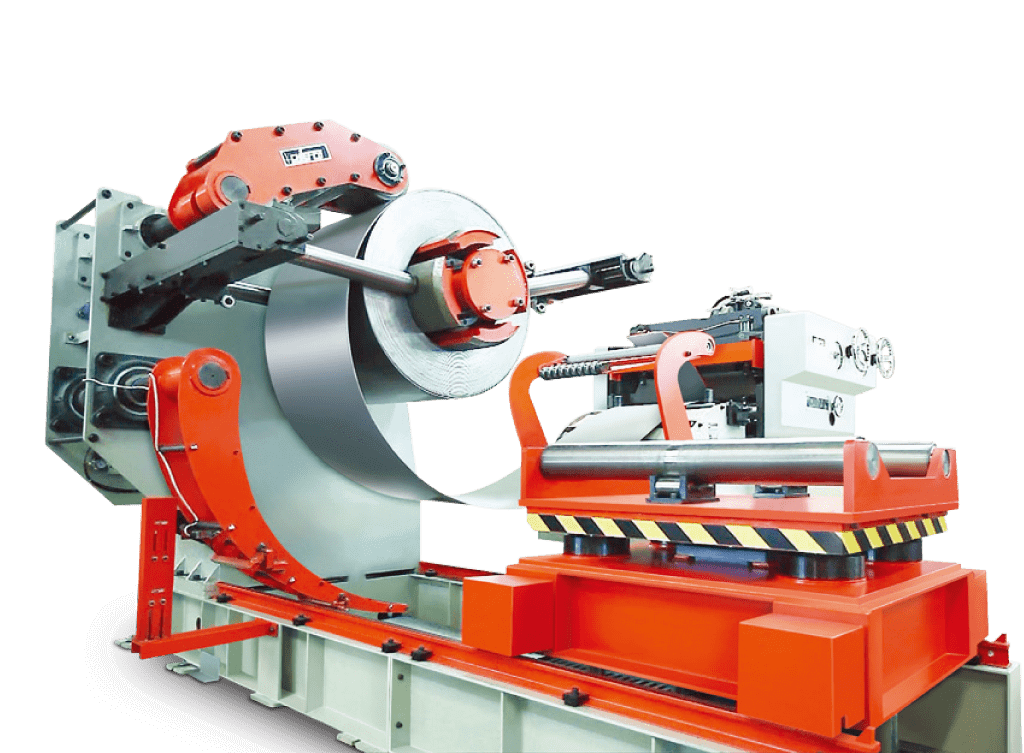

NC Servo Feeder | HF Series
DETAILS
Straightening Performance
| MODEL | Unit | HF-0840 | HF-0850 | HF-0860 | HF-0880 | HF-08100 | HF-08120 |
|---|---|---|---|---|---|---|---|
| Stock Thickness | mm | 1.0~8.0 | |||||
| Stock Width | mm | 50~400 | 50~500 | 50~600 | 50~800 | 50~1,000 | 50~1,220 |
| Coil Weight | kgs | 3,000(option 5,000) | 5,000(option 8,000~20,000) | ||||
| Coil Outside Dia. | mm | Φ1,400 | |||||
| Coil Inside Dia. | mm | Φ508(Option Φ610) | |||||
| Uncoiler Motor | kW | 3.5 | 5.0 | ||||
| Line Speed | m/min | 16 | |||||
| No. of work Rollers | 9 or 11 | ||||||
| Feed Motor | kW | AC Servo 11 | AC Servo 15 | ||||
| Stock Thickness | mm | Stock Width | |||||
| 3.2 | 400 | 500 | 600 | 800 | 1,000 | 1,200 | |
| 4.0 | 900 | ||||||
| 4.5 | 700 | ||||||
| 5.0 | 500 | ||||||
| 6.0 | 450 | ||||||
| 7.0 | 300 | ||||||
| 8.0 | 200 | ||||||
- Yield Strength 245N/mm2(25kg/cm2)
- Tensile Strength 392N/mm2(40kg/mm2)
High Tension Material Straightening Performance
- Yield Strength 600N/mm2(61kg/cm2)
| Stock Thickness | mmmm | 2.8 | 3.2 | 4.0 | 4.5 | 5.0 | 6.0 | 7.0 | 8.0 |
| Stock Width | 400 | 350 | 280 | 230 | 200 | 150 | 130 | 100 |
DETAILS

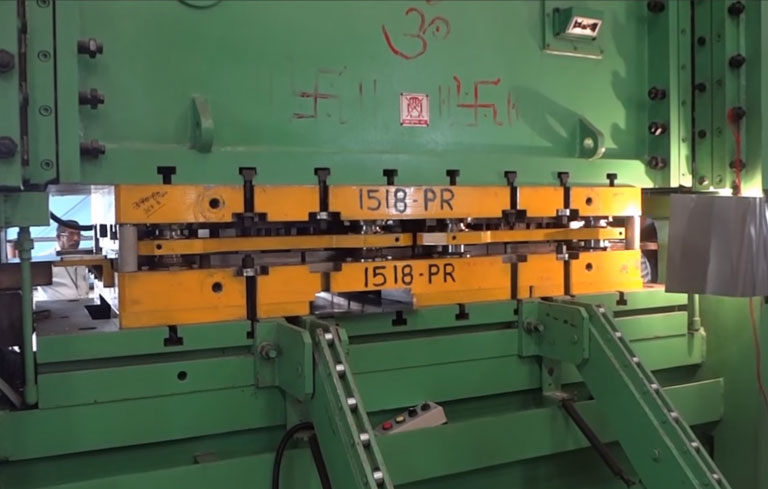

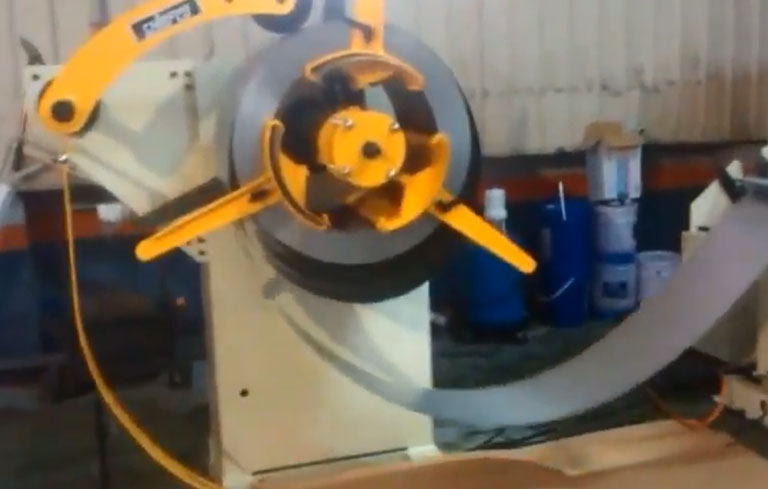

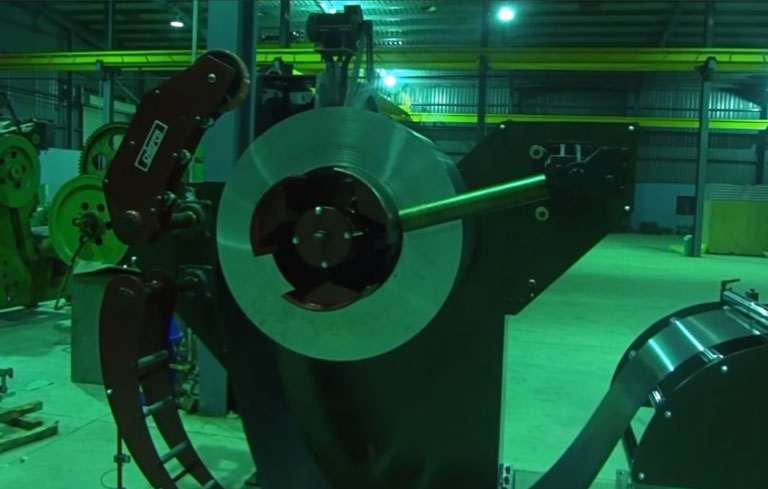

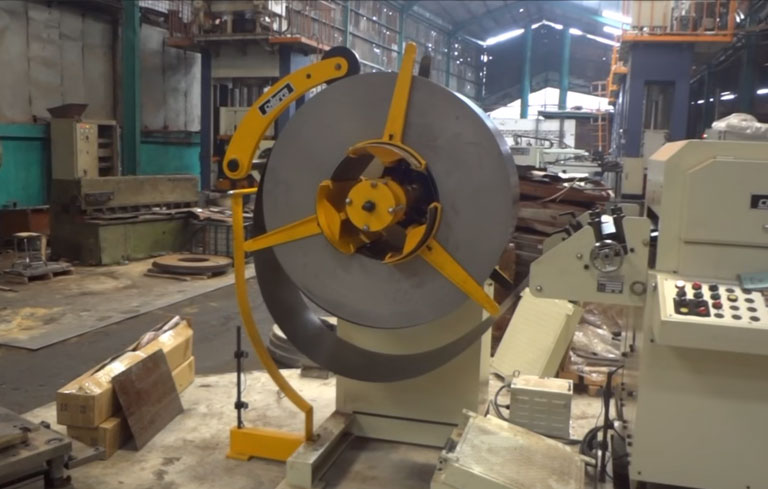

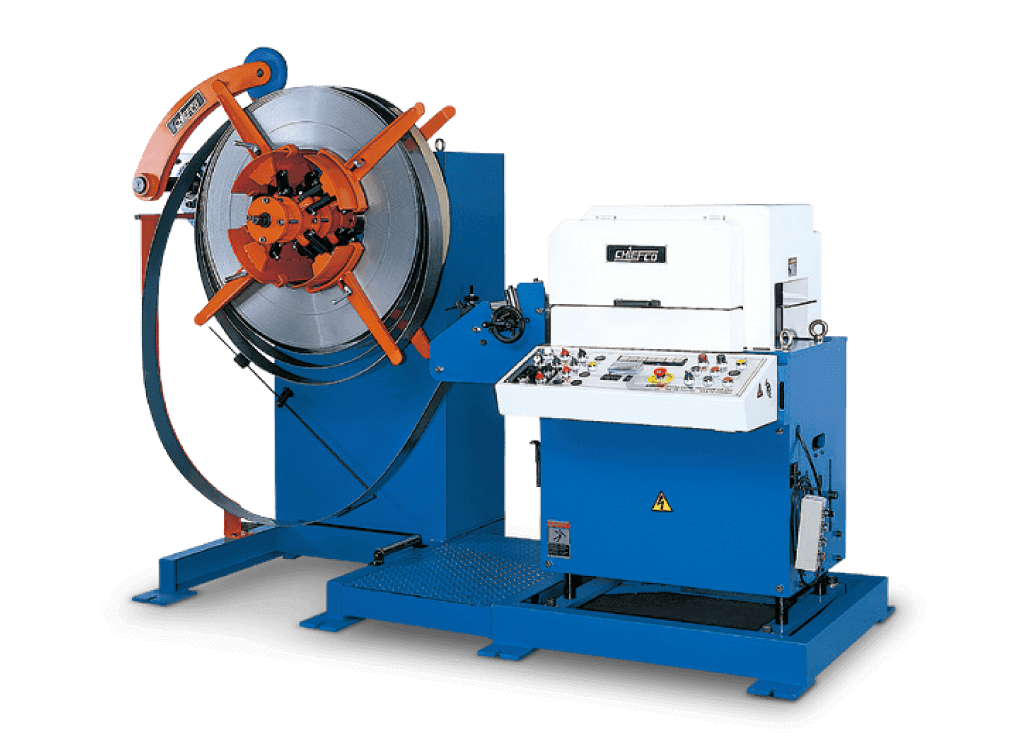

| MODEL | Unit | CF-0320 | CF-0330 | CF-0340 | CF-0350 | CF-0360 |
|---|---|---|---|---|---|---|
| Stock Thickness | mm | 0.3~3.2 | ||||
| Stock Width | mm | 50~200 | 50~300 | 50~400 | 50~500 | 50~600 |
| Coil Weight | kgs | 2,000 | 3,000 | |||
| Coil Outside Dia. | mm | Φ1,200 | ||||
| Coil Inside Dia. | mm | Φ508(Option Φ610) | ||||
| Uncoiler Motor | kW | 0.75 | ||||
| Line Speed | m/min | 16 | ||||
| No. of work Rollers | 7 or 9 | |||||
| Feed Motor | kW | AC Servo 2.0 | AC Servo 3.5 | |||
| Stock Thickness | mm | Stock Width | ||||
| 0.8 | 200 | 300 | 400 | 500 | 600 | |
| 1.2 | ||||||
| 1.6 | 470 | |||||
| 1.8 | 370 | |||||
| 2.0 | 280 | |||||
| 2.3 | 230 | |||||
| 2.8 | 150 | |||||
| 3.2 | 100 | |||||
DETAILS

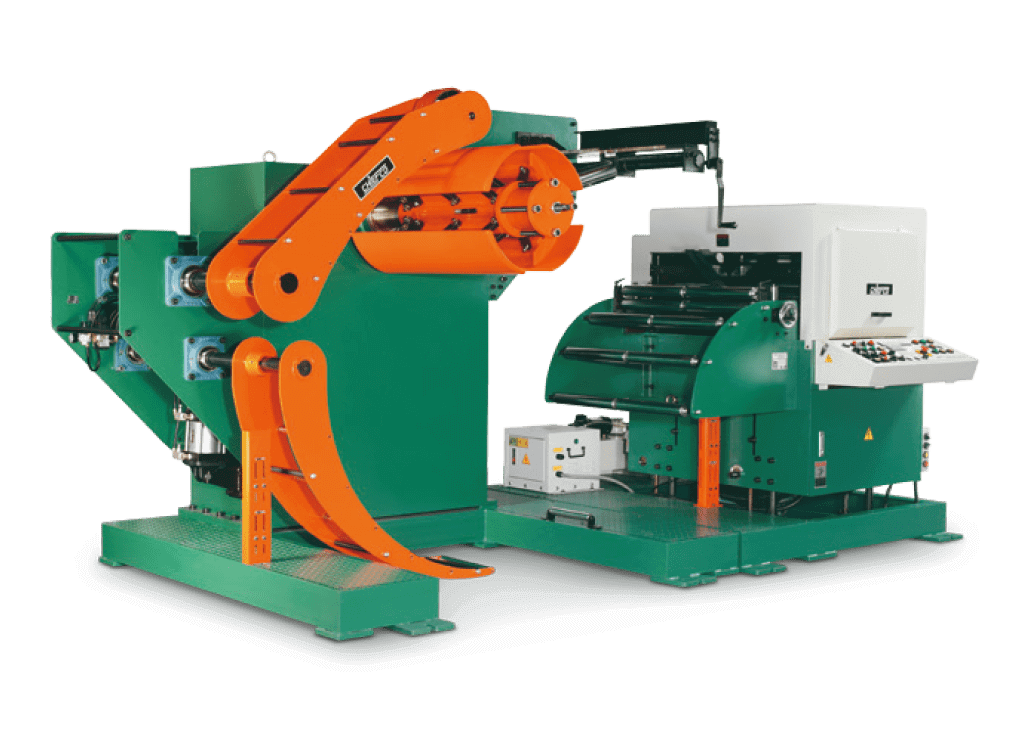

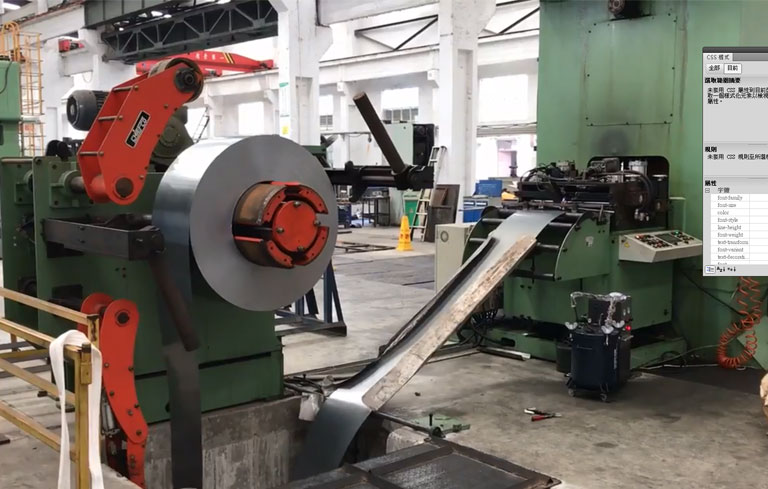

| MODEL | Unit | HB-0360 | HB-0380 | HB-03100 | HB-03120 |
|---|---|---|---|---|---|
| Stock Thickness | mm | 0.3~3.2 | |||
| Stock Width | mm | 50~600 | 50~800 | 50~1,000 | 50~1,220 |
| Coil Weight | kgs | 3,000(Option 5,000) | 5,000(Option 8,000~20,000) | ||
| Coil Outside Dia. | mm | Φ1,400 | |||
| Coil Inside Dia. | mm | Φ508(Option Φ610) | |||
| Uncoiler Motor | kW | 3.5 | 5.0 | ||
| Line Speed | m/min | 16 | |||
| No. of work Rollers | 9 | ||||
| Feed Motor | kW | AC Servo 5.0 | |||
| Stock Thickness | mm | Stock Width | |||
| 0.8 | 600 | 800 | 1,000 | 1,200 | |
| 1.0 | 1,000 | ||||
| 1.4 | 650 | ||||
| 1.6 | 520 | ||||
| 1.8 | 420 | ||||
| 2.0 | 320 | ||||
| 2.3 | 280 | ||||
| 2.8 | 200 | ||||
| 3.2 | 150 | ||||
DETAILS

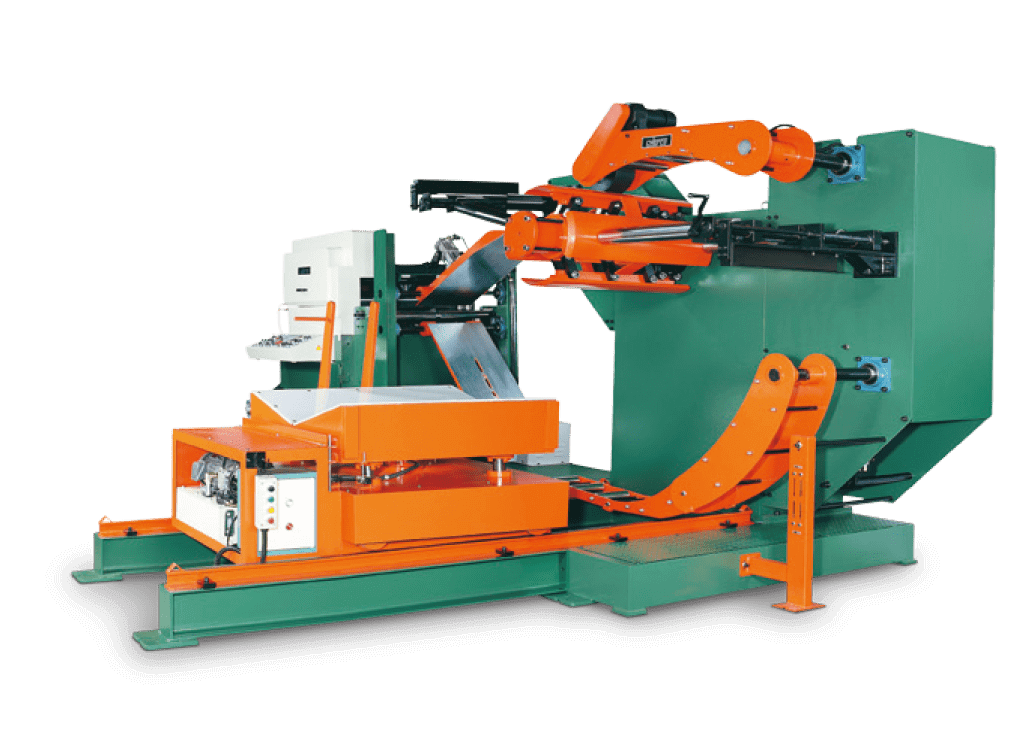

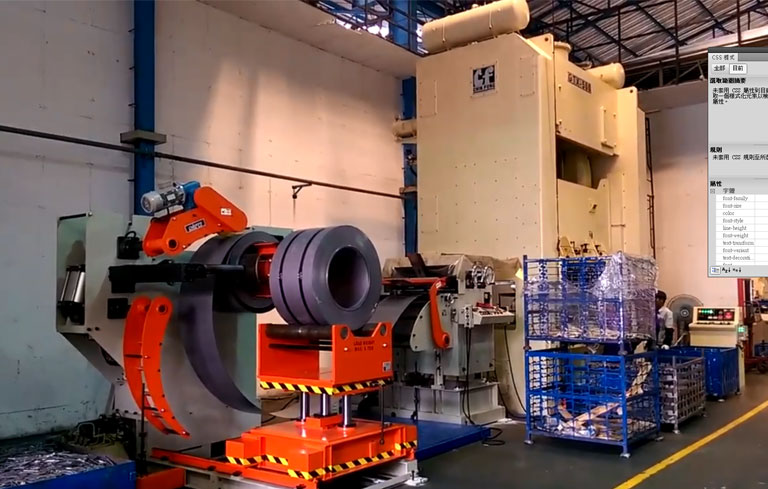

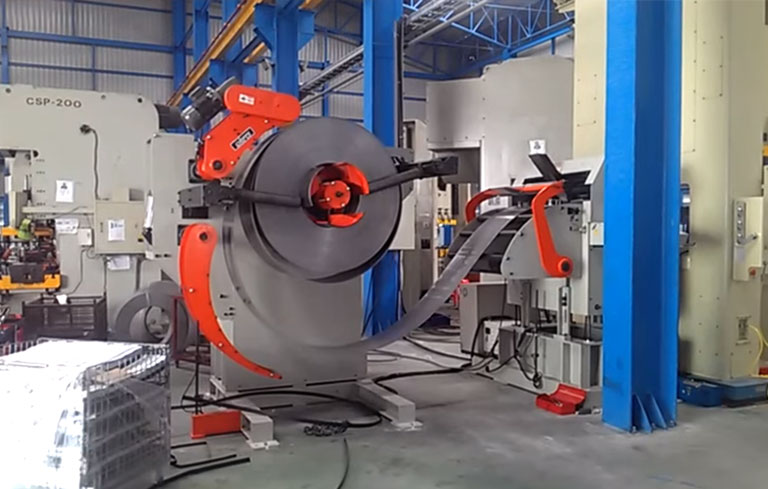

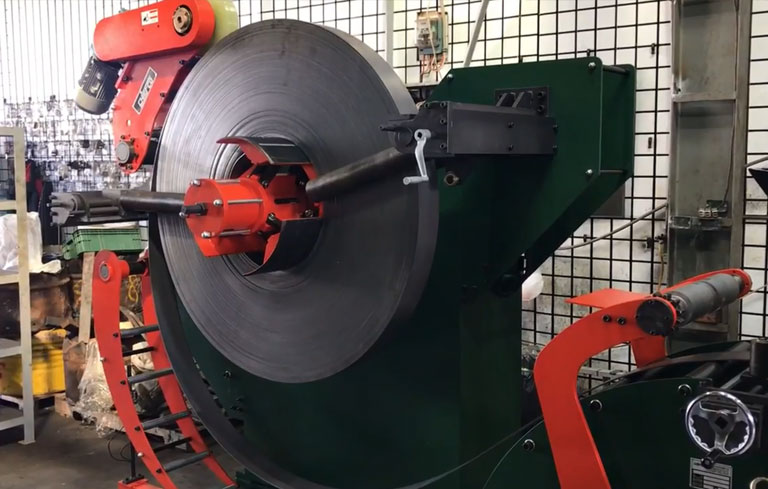

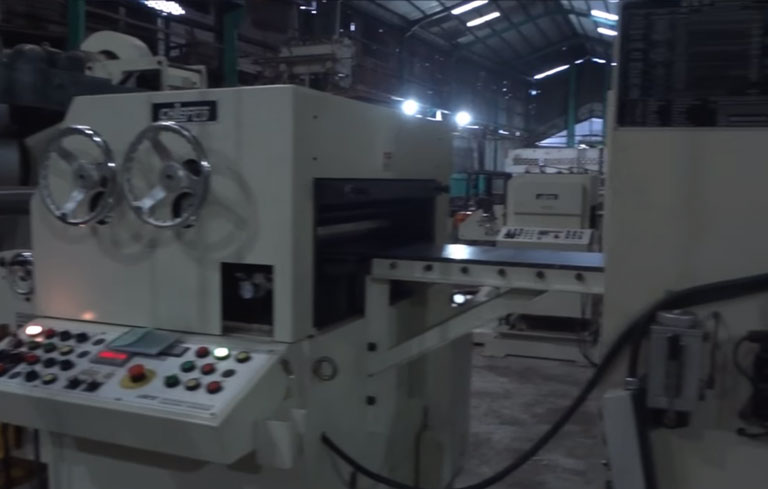

| MODEL | Unit | HR-0630 | HR-0640 | HR-0650 | HR-0660 | HR-0680 | HR-06100 | HR-06120 |
|---|---|---|---|---|---|---|---|---|
| Stock Thickness | mm | 0.5~6.0 | ||||||
| Stock Width | mm | 50~300 | 50~400 | 50~500 | 50~600 | 50~800 | 50~1,000 | 50~1,220 |
| Coil Weight | kgs | 3,000(Option 5,000) | 5,000(Option 8,000~20,000) | |||||
| Coil Outside Dia. | mm | Φ1,400 | ||||||
| Coil Inside Dia. | mm | Φ508(Option Φ610) | ||||||
| Uncoiler Motor | kW | 3.5 | 5.0 | |||||
| Line Speed | m/min | 16 | ||||||
| No. of work Rollers | 7 | |||||||
| Feed Motor | kW | AC Servo 7.0 | ||||||
| Stock Thickness | mm | Stock Width | ||||||
| 2.3 | 300 | 400 | 500 | 600 | 800 | 1,000 | 1,220 | |
| 2.5 | 1,100 | |||||||
| 2.8 | 900 | |||||||
| 3.2 | 650 | |||||||
| 4.0 | 420 | |||||||
| 4.5 | 320 | |||||||
| 5.0 | 250 | |||||||
| 6.0 | 180 | |||||||

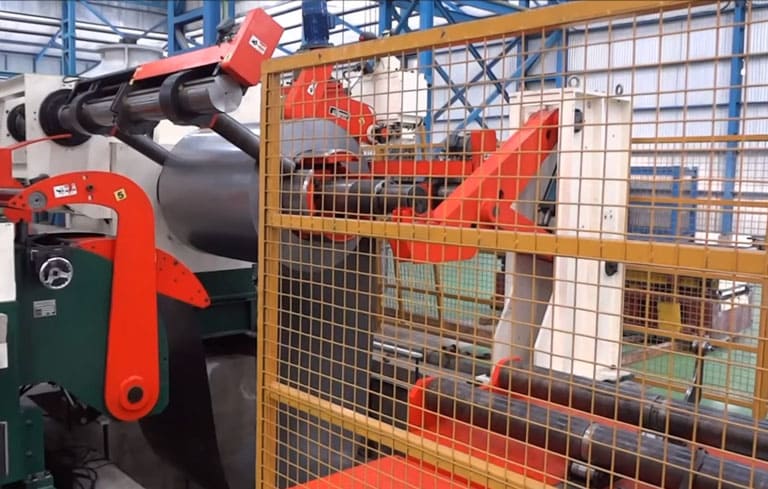

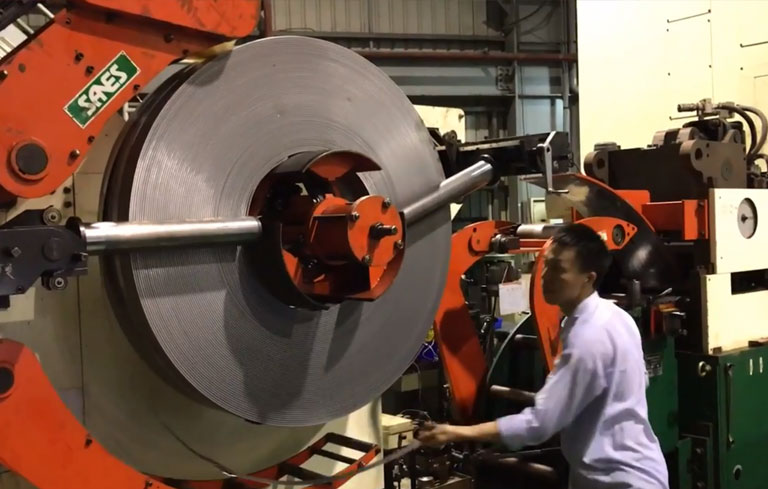

NC Servo Feeder | HR-HL Series
Video
DETAILS
Straightening Performance

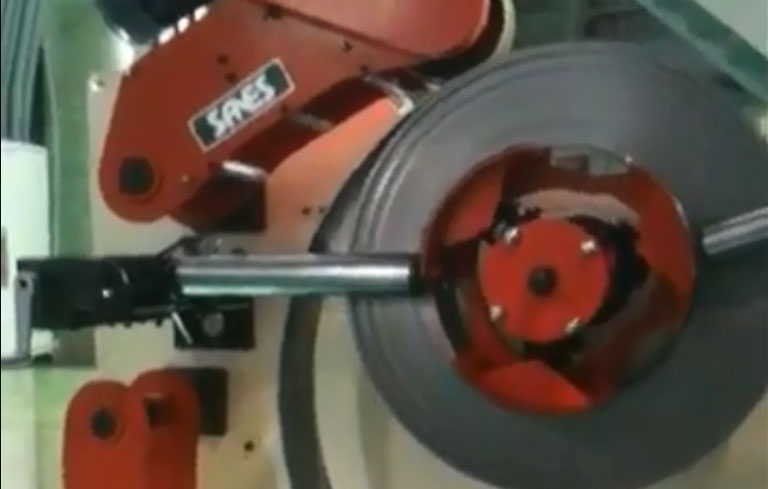

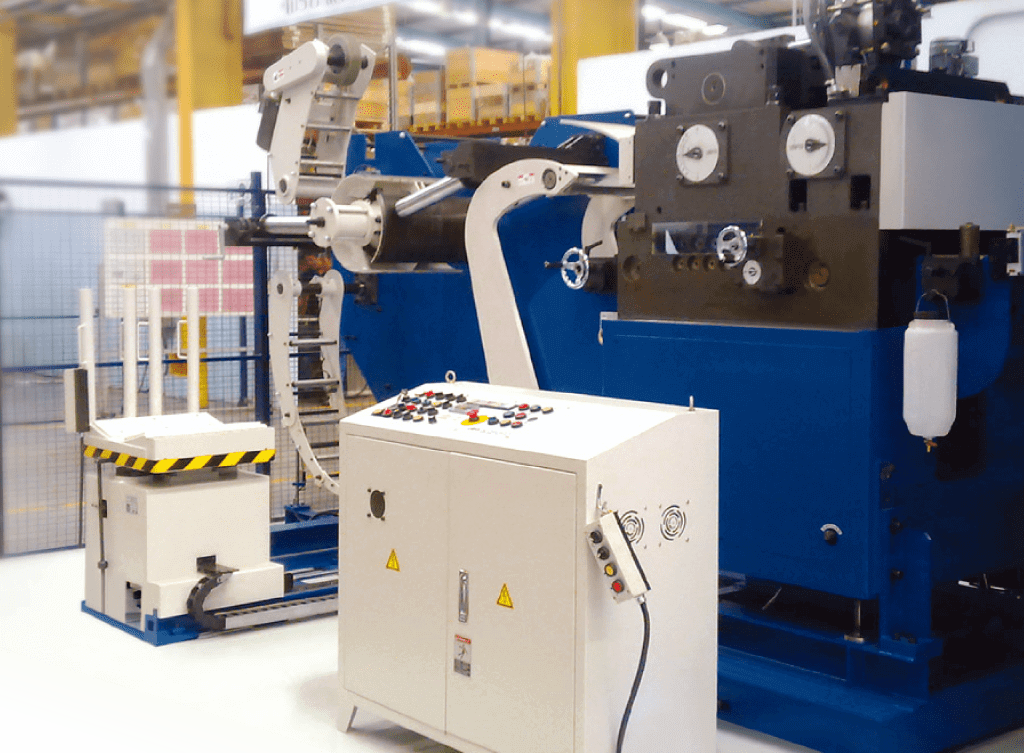

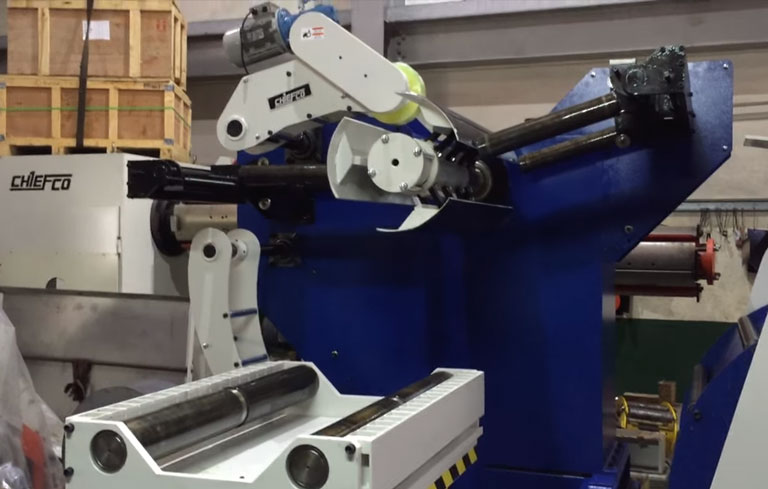

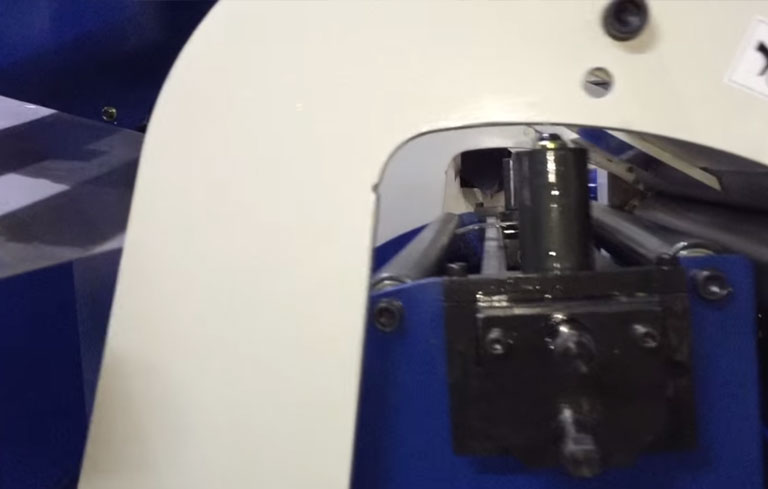

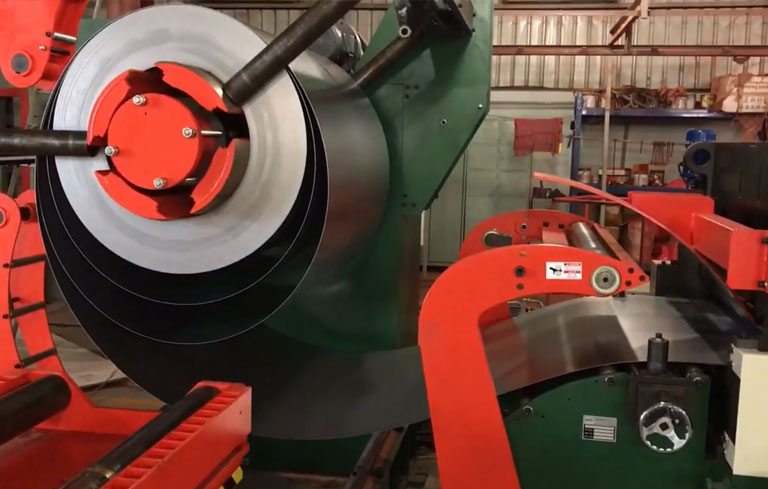

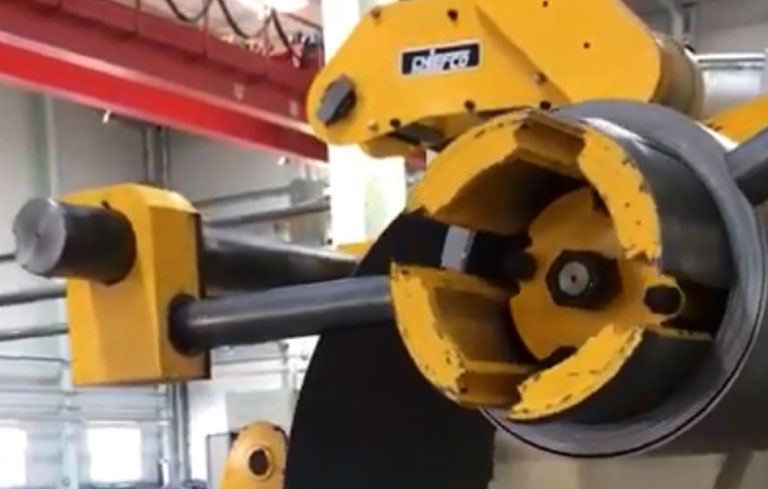

| MODEL | Unit | HR-0640HL | HR-0650HL | HR-0660HL | HR-0680HL | HR-06100HL | HR-06120HL |
|---|---|---|---|---|---|---|---|
| Stock Thickness | mm | 0.8~6.0 | |||||
| Stock Width | mm | 50~400 | 50~500 | 50~600 | 50~800 | 50~1,000 | 50~1,220 |
| Coil Weight | kgs | 3,000(Option 5,000) | 5,000(Option 8,000~20,000) | ||||
| Coil Outside Dia. | mm | Φ1,400 | |||||
| Coil Inside Dia. | mm | Φ508(Option Φ610) | |||||
| Uncoiler Motor | kW | 3.5 | 5.0 | ||||
| Line Speed | m/min | 16 | |||||
| No. of work Rollers | 9 or 11 | ||||||
| Feed Motor | kW | AC Servo 7.0 | AC Servo 11 | ||||
| Stock Thickness | mm | Stock Width | |||||
| 2.3 | 400 | 500 | 600 | 800 | 1,000 | 1,220 | |
| 2.8 | 930 | ||||||
| 3.2 | 720 | ||||||
| 4.0 | 490 | ||||||
| 4.5 | 420 | ||||||
| 5.0 | 350 | ||||||
| 6.0 | 300 | ||||||
- Yield Strength 245N/mm2(25kg/cm2)
- Tensile Strength 392N/mm2(40kg/mm2)
High Tension Material Straightening Performance
- Yield Strength 600N/mm2(61kg/cm2)
| Stock Thickness | mm | 2.5 | 2.8 | 3.2 | 4.0 | 4.5 | 5.0 | 6.0 |
| Stock Width | 220 | 200 | 170 | 130 | 110 | 100 | 80 |
As the client's prosperity is top priority for CHIEF AUTOMATIC TECH, we adhere to the ideals of "High Quality & Excellent Service", and guarantee these as we innovate new products with attached value and high profitability.
